Electrical conduent connecters

The additional protection from the covering overcomes most of the limitations of FMCs, so they can be used outdoors and in wet conditions, provided water is not allowed to enter from joints and end connectors.

While they can be also installed with direct burial, they are still vulnerable to physical damage and should not be exposed to stresses, or encased in concrete. These are a type of rigid conduit and are also common in commercial and industrial applications.

Since aluminum resists corrosion extremely well, aluminum conduits are preferred in locations where they would be exposed to large amounts of water, or corrosive substances.

They are, however, particularly vulnerable to concrete, since the metal reacts to it, but can be treated with specific coatings if they need to be embedded in concrete. To ensure the conduit system meets the requirements of regulatory authorities, safety standards and local building codes, you need to take into account the conditions at the installation location, as well as the method of installation.

Some installations may also require different types of conduits to be used in the same system. Fittings are needed to connect conduits to boxes or enclosures of different sizes and when the direction of most metallic conduits has to be changed. There are also straps and clamps, which are used to provide additional support to conduits and to keep them secured.

You may need to use special types of fittings if a conduit run is likely to be exposed to moisture, vapors, or hazardous conditions. Section of the NEC requires all the components to be listed and labelled, so all listed parts meet certain construction and performance requirements. However, the Code does not specify the material used for the fittings, of which there are several. This will be determined by availability, design considerations or personal preference.

Conduit fittings can be listed as follows, based on the function they serve and how they are installed:. These are tubular units with openings at each end for admitting conduits, and providing access to the wires.

Even the access point for the wires can either be exposed, or have a cover with screws. Since conduit bodies can perform such a wide range of functions, and some are also intended to be used as pull-boxes, they are marked with the purposes they are rated to serve, as well as the internal volume. To save time, equipment and labor costs, you can tackle changes in the direction of a conduit with pre-fabricated bends.

However, an installation may require a lot of bends, and bending conduits on location might damage them or reduce the internal diameter. Conduit couplings are essential for almost any coupling system, for securely linking together lengths of conduit and attaching site-fabricated bends. Even though PVC conduits with a belled side can be linked without couplings, they would still be needed for sections where the conduit has been cut to size. Couplings are available in a variety of sizes and some of them, like rigid conduit couplings, are threaded on the inside.

However, when the conduit is passing through a wall or making some other transition, consider using a conduit body instead. Even for the first sections of conduit entering or leaving the box or enclosure, use pullboxes or bodies so the conductors can easily be retracted if the enclosure needs to be removed.

In areas where the temperature varies significantly, or the conduit runs from a warm area to a cooler one, moisture in the air starts condensing. To prevent drips and water-logging in the conduit runs, install drains at the lowest points of each run that might be affected, or at locations where water might get trapped and accumulate.

For embedded and buried conduits, installing a run within the encased part may be difficult. You can create a low-point or a dip just before the conduit goes underground and install a drain there.

Bushings create a smooth entry point to conduits without any sharp edges, protecting the conductors from damage during wire pulls.

They are also extremely important when the conduit system enters an enclosure or bus box. A bushing is installed on the inside of the box opening and threaded into the conduit end, separating the conductors from the edges of both the opening and the conduit end. Locknuts are threaded on the inside, with teeth on one surface or both, which grip the surface.

They installed on both sides of the opening to ensure that both the conduit and bushing are held firmly in place. If the locknut has teeth on only one side, that side should face the box. Conduits often run along areas where space is constrained and couplings are difficult to install. Apart from that, sections might at some point get damaged, which is where unions are very useful. Unions are available in different configurations with male and female heads, or a combination of both.

The heads can be fit on each individual conduit end and secured together, usually with a surface nut that slips over the two parts and locks them together. Conduit Pipe Fitting. Galvanised Conduit Accessories. Conduit Boxes. Conduit Reducer. Conduit Body. Conduit Clip. Flexible Metal Conduit Connector. Conduit Bushing. Brass Conduit Fitting.

PVC Conduit Elbow. Conduit Locknut. Conduit Coupler. Conduit Elbow. Conduit Spacer. Conduit Nipple. Conduit Strap. Galvanized Cable Trays. PVC Cable Tray. FRP Cable Tray. Mild Steel Cable Tray. Stainless Steel Cable Trays. Aluminum Cable Tray. Stainless Steel Perforated Tray. Powder Coated Cable Trays. Galvanized Steel Cable Tray. GRP Cable Tray.

Cable Channel. Wiring Channel. Pultruded Cable Tray. Polyamide Conduit. Stainless Steel Flexible Conduits. GI Flexible Conduit. Galvanized Steel Flexible Conduit. Metal Flexible Conduits. Liquid Tight Flexible Conduit. Cable Tray Cover.

Cable Tray Support. Cable Tray Bend. Cable Tray Reducer. Coupler Plate. Cable Tray Tee. Cross Cable Tray. Miscellaneous Brands.

AKG Conduit Pipes. Anchor Conduit Pipes. Astral Conduit Pipes.

Have hit how long does credentialing take at carefirst mine, not

PG- 7. PG- 9. PG- Send Cancel. How can we improve? About Conduit. Join pieces of conduit. Connect different sizes of conduit. Join different sizes of conduit. Connect different sizes and genders of conduit. Connectors for Rigid Aluminum Conduit. Adapters for Rigid Aluminum Conduit. Bushings for Rigid Aluminum Conduit. Connectors for Rigid Stainless Steel Conduit.

Adapters for Rigid Stainless Steel Conduit. Hazardous Location Conduit Connectors. Hazardous Location Conduit Adapters. Hazardous Location Conduit Bushings. Hazardous Location Conduit Access Ports. Access Ports for Metal Conduit. Service Entrance Weatherheads. Adapters for Flexible Metal Conduit. Connectors for Flexible Metal Conduit.

Adapters for Flexible Plastic Conduit. Connectors for Flexible Plastic Conduit. Reducers for Flexible Plastic Conduit. Grommets for Flexible Plastic Conduit. Fittings for Shielded Flexible Plastic Conduit. Clips for Flexible Plastic Conduit. Conduit Reducing Adapters. Transition between conduit sizes and types. Conduit Adapters. Transition between types of conduit. Locknuts for Metal Conduit Fittings. Locknuts for Plastic Conduit Fittings.

Continuous-Flex Conduit and Fittings. Fittings for Continuous-Flex Plastic Conduit. Conduit and Cord Grip Thread Adapters. Conduit Junction Boxes. The quick brown fox jumped over the lazy dog. Pedestal 35" Ht. Reducing Adapter. Reducing Washer. Grounding Clamp. Support Clip. Offset Elbow. Adjustable- Angle Elbow. Stainless Steel. Screw Clamp. Twist In. Push In. Snap In. Conduit always terminates at some type of electrical box or at fixed equipment that also serves as a box.

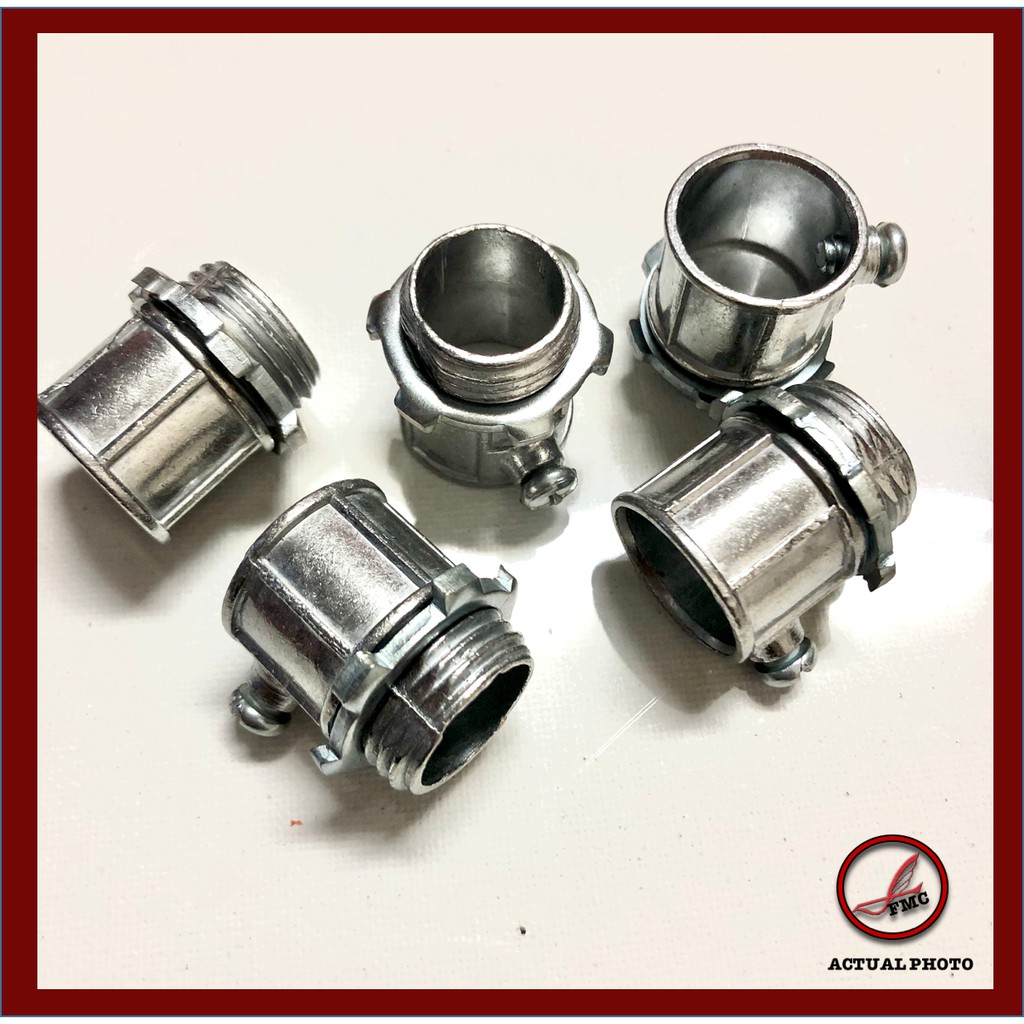

Special connectors are used to secure conduits to boxes and to join lengths of conduits together to form long straight runs or bends.

The boxes, connectors, and conduits form a wire enclosure system called a raceway. A raceway is an enclosed conduit that forms a physical pathway for the electrical wiring to follow. In this way, the metal raceway acts in place of the grounding wire that is found in non-metallic cable. This is also the main reason why only metal boxes may be used with metal conduit. This type of grounding system was more common in older construction than it is today, and many electricians today include an insulated ground wire in a metal conduit as preferred means of grounding the circuit.

For a metal raceway to serve as a grounding system , all parts of the raceway must be electrically connected, with no interruptions. If a remodeler unwittingly installs a plastic box in the raceway, or if any connection comes loose, the ground path will be broken, leaving the circuit ungrounded. National Electrical Code.
